The Sound Transit Board identified the preferred alternative for the West Seattle Link Extension and requested further study for the Ballard Link Extension. For details, please view our press release and the Board Motion. Information on this website is based on the Draft EIS analysis of project routes and stations and will be updated as more information is available.

Welcome

Back in 2019, the Sound Transit Board identified preferred alternatives and other alternatives to study in a Draft Environmental Impact Statement (EIS), which was published on Jan. 28, 2022 followed by a 90-day public comment period. The Draft EIS evaluated potential impacts and benefits of the alternatives on the natural and built environment and transportation system, and identified potential mitigation measures.

After reviewing the Draft EIS and the comments from Tribes, the public and agency partners, the Sound Transit Board identified the preferred alternative for the West Seattle Link Extension and requested further study for the Ballard Link Extension. Read more about the Sound Transit Board’s action in our press release and the Board Motion.

In the Final EIS, expected to be published in late 2023 , Sound Transit will respond to comments received during the Draft EIS comment period. Following the publication of the Final EIS, the Board will select the project to be built. The Draft EIS Agency and Public Comment Summary Report provides an overview of comment themes along with appendices of all comments received.

Two people looking at a project handout together. — The West Seattle and Ballard Link Extensions will provide fast, reliable light rail connections to dense residential and job centers throughout the region.

About the project

The West Seattle and Ballard Link Extensions will provide fast, reliable light rail connections to dense residential and job centers throughout the region. In addition, a new downtown Seattle light rail tunnel will provide capacity for the entire regional system to operate efficiently. These two separate Link extensions are part of the regional transit system expansion approved by voters in November 2016.

New to the project and looking for more background? Visit the project overview to get up to speed.

Overview

About the project

West Seattle Link Extension
- Adds 4.7 miles of light rail service from downtown Seattle to West Seattle's Alaska Junction neighborhood.
- Includes 4 new stations from SODO to Alaska Junction.
Ballard Link Extension
- Adds 7.1 miles of light rail service from downtown Seattle to Ballard, including a new downtown Seattle rail-only tunnel.
- Includes 9 new stations from Chinatown-International District to Market Street.

Project timeline

2016 Voter Approval

2017-2023 Planning

Alternatives development
ST Board identifies preferred alternative
Draft Environmental Impact Statement
ST Board modifies the preferred alternative for West Seattle Link Extension
ST Board confirms or modifies the preferred alternative for Ballard Link Extension
Final Environmental Impact Statement
ST Board selects projects to be built
Federal Transit Administration issues Record of Decision

2023-2026 (West Seattle Extension) and 2023-2027 (Ballard Extension) Design

Procure final design and construction contracts
Obtain land use and construction permits
Begin property acquisition / relocation
Advance utility relocation / early work contracts

2026-2032 (West Seattle Extension) and 2026-2037/2039* (Ballard Extension) Construction

Demolition and clearing where necessary to build and operate the light rail guideway
Earth work such as stormwater systems, column footings, retaining walls and tunneling
Guideway and station construction
Ongoing conversations with anyone affected by construction
Safety education
Testing and preparations

2032 (West Seattle Extension) and 2037-2039* (Ballard Extension) Start of Service

*Ballard Link Extension: Sound Transit is managing the Ballard Link Extension toward a 2037 delivery target by working to close a project affordability gap most recently forecasted at approximately $1.8 billion. The agency is seeking to reduce or eliminate this gap by increasing funding and support at the local, state and national levels, and by reducing costs as the Sound Transit Board considers and adopts project alignment options with input from partners and the public. If it is not possible to close the gap, current financial assumptions reflect Sound Transit’s ability to affordably open service to Smith Cove in 2037, and to Ballard in 2039. Learn more about realignment.

An image of the West Seattle and Ballard Link Extensions project map that displays the preferred alternatives and other alternatives we are currently evaluating. The map also includes station locations, and describes if an alternative is elevated, in a tunnel or at-grade. — Preferred and other alternatives we are currently evaluating.

Learn more about the alternatives

Choose a segment below to view the route and station options and a high-level comparison of the Draft EIS alternatives.

Interbay/Ballard
South Interbay
Downtown
Chinatown-International District
SODO
Duwamish
Delridge/West Seattle Junction

Equity and inclusion

Sound Transit is committed to centering communities along the project corridor and engaging communities of color and low-income and other vulnerable populations throughout the public involvement process. During the environmental review process, Sound Transit conducted an environmental justice analysis, which is included in the Draft EIS. The analysis:

Describes the demographics of the project corridor.
Evaluates whether the project would disproportionately impact communities of color and low-income communities.
Considers potential project benefits such as improved access to opportunity.
Documents our efforts to involve communities of color and low-income populations in the planning process and what we have heard so far from outreach efforts.

Along with the Draft EIS environmental justice analysis, Sound Transit and the City of Seattle have partnered on the Racial Equity Toolkit (RET) process for the project. The RET lays out a process and a set of questions to guide the development, implementation and evaluation of the project to advance racial equity. The RET process began early in project development, informing data analysis, technical evaluation and the focus and extent of community engagement. During the environmental review phase, the RET builds on the environmental justice assessment for this project, documenting potential project impacts and benefits, and community feedback. However, given that the RET process is guided by a different framework than the EIS environmental justice requirements, the report on the RET process and findings is structured differently, and is oriented around RET outcomes for the project. A draft RET report on the process, requirements, outcomes and findings is available now.

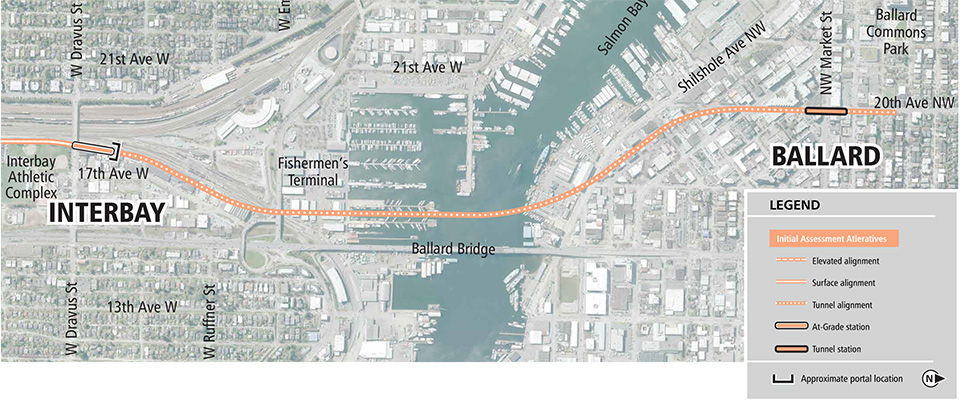

Interbay/Ballard Alternatives

Map of Ballard and Interbay stations in northwest Seattle showing a pink line for preferred alternatives, brown lines for preferred alternatives with third party funding, and blue lines for other Draft EIS alternatives. Lines indicate elevated, at-grade and tunnel alternatives. See text description below for additional details. — Click to enlarge

Click to enlarge

The Elevated 14th Avenue Alternative would cross over West Dravus Street on an elevated guideway parallel to the BNSF tracks and then curve northeast to the Interbay Station. The station would be just north of West Dravus Street between the railroad tracks and 17th Avenue West. The alternative would continue on an elevated guideway from the Interbay Station northeast over the Emerson Street interchange and then curve north to cross Salmon Bay on a fixed-span bridge on the east side of the Ballard Bridge (15th Avenue Bridge). The alternative would continue north within the 14th Avenue Northwest right of way before transitioning to the east edge of the road south of Northwest Market Street. The Ballard Station would be on the east side of 14th Avenue Northwest, straddling Northwest Market Street. Elevated tail tracks would extend north of the station along the east side of 14th Avenue Northwest and would then curve west to end above the center of the roadway.

Click to enlarge

The Tunnel 14th Avenue Alternative would cross under West Dravus Street, enter a retained cut parallel to the BNSF tracks and then curve northeast to the Interbay Station. The station would be in a retained cut north of West Dravus Street, between 17th Avenue West and Thorndyke Avenue West. The alternative would continue in a retained cut from Interbay Station to a tunnel portal between 15th Avenue West and Thorndyke Avenue West. The tunnel would travel northeast under the Emerson Street interchange, under Salmon Bay (east of the Ballard Bridge), and then curve north beneath 14th Avenue Northwest to Northwest Market Street. The station would be under 14th Avenue Northwest and Northwest Market Street. Tail tracks would extend beneath 14th Avenue Northwest north of the station.

Click to enlarge

The Interbay Station and tunnel alignment for the Tunnel 15th Avenue Station Option would be the same as the Tunnel 14th Avenue Alternative until just north of the tunnel portal, where it would head north under Salmon Bay and continue in a tunnel east of 15th Avenue Northwest to the Ballard Station. The station would be east of 15th Avenue Northwest and south of Northwest Market Street. Tail tracks would extend north of the station underneath the east side of 15th Avenue Northwest.

Click to enlarge

The Elevated 14th Avenue Alternative Alignment Option is a design option for connecting the Prospect Street Station/15th Avenue Alternative in the South Interbay segment to the Elevated 14th Avenue Alternative bridge over Salmon Bay. The alignment would start north of the Interbay Station on 15th Avenue West. It would extend to the northeast of the intersection of 15th Avenue West and West Emerson Street on an elevated guideway and would connect to the 14th Avenue alignment bridge over Salmon Bay. The bridge over Salmon Bay and the elevated guideway to the north would be the same as for the Elevated 14th Avenue Alternative.

Click to enlarge

The Elevated 15th Avenue Alternative would cross over West Dravus Street in the median of 15th Avenue West. The Interbay Station would be elevated above 15th Avenue West, straddling West Dravus Street. The alternative would continue on an elevated guideway from the Interbay Station on the west side of 15th Avenue West and climb to cross over the Emerson Street interchange. From the interchange, the alternative would cross over the east side of Fishermen’s Terminal west of the Ballard Bridge and cross Salmon Bay on a moveable bridge. The alternative would continue north from the bridge on an elevated guideway on the west side of 15th Avenue Northwest and transition to the east edge of 15th Avenue Northwest near Northwest 52nd Street. The Ballard Station would be elevated above the east edge of 15th Avenue Northwest, south of Northwest Market Street. Elevated tail tracks would extend north of the station along the east edge of 15th Avenue Northwest within the road right of way.

Previous Next

Compare Interbay/Ballard Alternatives

This slide is a comparison table with a summary of project considerations for alternatives in Interbay/Ballard. It focuses on the performance level of each alternative for each of the project considerations and comprises a 5-column, 6-row table. The column headers read: Elevated 14th Avenue, Tunnel 14th Avenue, Tunnel 15th Avenue Option, Elevated 15th Avenue, Elevated 14th Avenue Option (from Prospect/15th). The row headers read: Project cost (2019 in billions), residential displacements, historic property effects, employee displacements, in-water effects, and other considerations. Text under the table reads: The above information is for illustration only. Please refer to DEIS for further detail. For project cost, the Elevated 15th Avenue, Tunnel 14th Avenue, and Elevated 15th Avenue alternatives perform highest by being the lowest in cost. For residential displacement, The Tunnel 14th Avenue and Elevated 15th Avenue best mitigate residential displacement, performing the highest. The Tunnel 14th Avenue and Tunnel 15th Avenue Option affect the least number of historic properties, performing highest. The Tunnel 14th Avenue, Tunnel 15th Avenue Option, and Elevated 14th Avenue Option (from Prospect /15th) perform highest at the amount of employees displaced. The Tunnel 14th Avenue and Tunnel 15th Avenue alternatives produce no in-water effects. The Tunnel 14th Avenue alternative performed highest overall. The information provided within each cell reflect the information provided in each alternative’s individual table and callout box slide. Please refer to the individual alternatives slides or to the DEIS for further detail. — Click to enlarge

The slide is labeled Elevated 14th Avenue and includes a single column table with six rows on the left and the Elevated 14th Avenue route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.5 billion. Row 2: 104 residential unit displacements. Row 3: 5 historic properties affected. Row 4: 600 employee displacements. Row 5: In-water effects (permanent) – 0.7 acres. Row 6: Other considerations. Text below the cross-section cutaway reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. The map to the right is overlayed with three callout boxes. One callout box has a house icon, which indicates residential displacement. It is pointing to an area in Interbay near the proposed route along 11th Avenue, the text reads “multi-family buildings.” There are three callout boxes pointing to the river, with a water drop icon, which indicates in-water effects. The texts read: “Habitat”. “Navigation”. “Tribal Fishing Treaty Rights”. There are two callout boxes with magnifying glass icons, which indicates other considerations. One is pointing to Ballard waterline adjacent to the river. The text reads: ”boat ramp and stormwater outfall relocation.” The other callout box is pointing to both sides of the river. The text reads: “Maritime business displacements.” — Click to enlarge

The slide is labeled Tunnel 14th Avenue and includes a single column table with six rows on the left and the Tunnel 14th Avenue route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.5 billion. Row 2: 14 residential unit displacements. Row 3: 2 Historic property effects – 2 properties. Row 4: 380 Employee displacements. Row 5: No permanent in-water effects. Row 6: Other considerations. Text below the cross-section cutaway reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. — Click to enlarge

The slide is labeled Tunnel 15th Avenue Station Option and includes a single column table with six rows on the left and the Elevated 14th Avenue route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.7 billion. Row 2: Twenty-one residential unit displacements. Row 3: One historic property is affected. Row 4: 370 employee displacements. Row 5: No permanent in-water effects. Construction Effects See Map. Row 6: Other considerations. Text below the cross-section cutaway reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. The map to the right is overlayed with one callout box. The callout box has a magnifying glass icon, which indicates other project considerations. It is pointing to the proposed station in Ballard and the text reads: “Construction closures on 15th.” — Click to enlarge

The slide is labeled Elevated 14th Avenue Option (from Prospect/15th) and includes a single column table with six rows on the left and the alternative route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.6 billion. Row 2: 136 residential unit displacements. Row 3: Six historic properties effected. Row 4: 390 employee displacements. Row 5: In-water effects (permanent) – 0.7 acres. Row 6: Other considerations. Text below the cross-section cutaway reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. The map to the right is overlayed with three callout boxes. One callout box has a house icon, which indicates residential displacement. It is pointing to an area in Interbay near the proposed route along 11th Avenue, the text reads “multi-family buildings.” There are three callout boxes pointing to the river, with a water drop icon, which indicates in-water effects. The texts read: “Habitat”. “Navigation”. “Tribal Fishing Treaty Rights”. There are two callout boxes with magnifying glass icons, which indicates other considerations. One is pointing to Ballard waterline adjacent to the river. The text reads: ”boat ramp and stormwater outfall relocation.” The other callout box is pointing to both sides of the river. The text reads: “Maritime business displacements.” — Click to enlarge

The slide is labeled Elevated 15th Avenue and includes a single column table with six rows on the left and the alternative route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.5 billion. Row 2: 11 residential unit displacements. Row 3: Seven historic properties effected. Row 4: 600 employee displacements. Row 5: In-water effects (permanent) – 0.8 acres. Row 6: Other considerations. Text below the cross-section cutaway reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. The map to the right is overlayed with seven callout boxes. One callout box has a historic building icon, which indicates historic property effects. It is pointing to the Fisherman’s Terminal and the text reads “Historic District.” Another callout box has a people icon, indicating employee displacement. It is pointing to an area just east of the proposed station in Ballard and the text reads ”Commercial Complex 410”. There are three callout boxes pointing to the river, with a water drop icon, which indicates in-water effects. The texts read: “Habitat”. “Navigation”. “Tribal Fishing Treaty Rights”. There are two callout boxes with magnifying glass icons, which indicates other project considerations. One is pointing to the Ballard waterline just north of West Seattle Bridge. The text reads: ”Delays to bridge openings”. The other callout box is pointing to both sides of the river. The text reads: “Maritime business displacements.” — Click to enlarge

Previous Next

South Interbay Alternatives

Map of Smith Cove station in northwest Seattle showing a pink line for preferred alternatives and blue lines for other Draft EIS alternatives. Lines indicate elevated, at-grade and tunnel alternatives. See text description below for additional details. — Click to enlarge

Click to enlarge

The Galer Street Station/Central Interbay Alternative would continue the tunnel beneath Republican Street in the Downtown segment from 2nd Avenue West to a tunnel portal on the east side of 5th Avenue West. From the tunnel portal, the alternative would become elevated and cross to the west side of Elliott Avenue West and continue northwest. The guideway would cross to the east side of Elliott Avenue West near West Mercer Place and would continue northwest between the east side of Elliott Avenue West and Kinnear Park. North of Kinnear Park, the alignment would transition to the west side of Elliott Avenue West to enter the Smith Cove Station. Smith Cove Station would be elevated above the West Galer Street bridge. From the Smith Cove Station, the elevated guideway would cross over the Magnolia Bridge and continue north along the east side of the BNSF Railway tracks to West Armory Way. From West Armory Way, the alignment would continue north along the western edge of the Interbay Golf Center and Interbay Athletic Complex. The elevated guideway would continue over West Dravus Street and connect to the Elevated 14th Avenue Alternative in the Interbay/Ballard segment. For this alternative to connect to the tunnel alternatives (Tunnel 14th Avenue Alternative and Tunnel 15th Avenue Station Option) in the Interbay/Ballard segment, it would transition from elevated to at-grade along the Interbay Athletic Complex to continue under West Dravus Street.

Click to enlarge

The Prospect Street Station/15th Avenue Alternative would continue the tunnel beneath Republican Street in the Downtown segment from 2nd Avenue West to a tunnel portal on the east side of 5th Avenue West. From the tunnel portal, the alternative would become elevated and cross to the west side of Elliott Avenue West and continue northwest. The guideway would cross to the east side of Elliott Avenue West near West Mercer Place and would continue northwest between the east side of Elliott Avenue West and Kinnear Park. It would enter an elevated Smith Cove Station north of Kinnear Park on the east side of Elliott Avenue West. The station would be north of West Prospect Street. From the Smith Cove Station, the elevated guideway would continue northwest along the east side of Elliott Avenue West and then transition to a retained cut along the edge of the Southwest Queen Anne Greenbelt before turning north and transitioning to the center of 15th Avenue West near West Newton Street. It would continue on the elevated guideway in the middle of 15th Avenue West to West Barrett Street. This alternative would only connect to the bridge alternatives (Elevated 14th Avenue Alternative Alignment Option and Elevated 15th Avenue Alternative in the Interbay/Ballard segment).

Click to enlarge

The Prospect Street Station/Central Interbay Alternative would continue the tunnel under West Mercer Street from the Downtown segment from 2nd Avenue West to a tunnel portal east of Elliott Avenue West on the northwestern edge of Kinnear Park, south of West Prospect Street. The alternative would continue north from the tunnel portal in a retained cut to Smith Cove Station north of West Prospect Street. The station would be in a retained cut, and the alternative would continue north in a retained cut along the edge of the Southwest Queen Anne Greenbelt. The alternative would transition to an elevated guideway near West Howe Street and cross 15th Avenue West at West Armory Way to travel northwest along the northern side of West Armory Way. From West Armory Way, it would continue north along the western edge of the Interbay Golf Center and Interbay Athletic Complex and then continue over West Dravus Street to connect to the Elevated 14th Avenue Alternative. For this alternative to connect to the tunnel alternatives (Tunnel 14th Avenue Alternative and Tunnel 15th Avenue Station Option) in the Interbay/Ballard segment, it would transition from elevated to at-grade along the Interbay Athletic Complex and continue under West Dravus Street.

Previous Next

Compare South Interbay Alternatives

This slide is a comparison table with a summary of project considerations for alternatives in South Interbay. It focuses on the performance level of each alternative for each of the project considerations and comprises a 3-column, 7-row table. The column headers read: Galer Street Station/Central Interbay, Prospect Street Station/15th Avenue, and Prospect Street Station/Central Interbay. The row headers read: Project cost (2019 in billions), residential displacements, historic property effects, park effects (permanent), biodiversity effects (permanent), roadway effects (permanent), and other considerations. Text under the table reads: The above information is for illustration only. Please refer to DEIS for further detail. For project cost, the Galer Street Station/Central Interbay alternative performs highest by being the lowest in cost. For residential displacement, the Prospect Street Station/Central Interbay would displace the fewest residential units, performing the highest. It also performs highest in the number of historic properties it would affect. Prospect Street Station/15th Avenue performs highest in permanent park effects, by having the least amount of parkland affected among the alternatives. Galer Street Station/Central Interbay impacts the least amount of biodiversity, performing highest. Prospect Street Station/Central Interbay would have the least effect on the roadway of all alternatives, performing highest. The information provided within each cell reflect the information provided in each alternative’s individual table and callout box slide. Please refer to the individual alternatives slides or to the DEIS for further detail. — Click to enlarge

The slide is labeled Galer Street Station/Central Interbay and includes a single column table with seven rows on the left and the alternative route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.3 billion. Row 2: 140 residential unit displacements. Row 3: Seven historic properties affected. Row 4: 3.1 acres of parkland permanently affected. Row 5: Less than 0.1 acre of biodiversity permanently affected. Row 6: 0.4 Miles of Roadway (Guideway) affected. Row 7: Other considerations. Text below the cross-section cutaway reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. The map to the right is overlayed with five callout boxes. One callout box has a house icon, which indicates residential displacement. It is pointing at an area along 4th Avenue near the proposed route and the text reads “Multi-family buildings.” One callout box has a tree icon, which indicates permanent park effects. It is pointing at the Interbay Golf Center and the text reads “Interbay recreation facilities.” Three callout boxes have a car icon, which indicates roadway effects. Each of the callout boxes point to the proposed route with text that reads: “construction closures on Eliot,” “Complex utility relocations,” and “Left turn restrictions.” — Click to enlarge

The slide is labeled Prospect Street Station/15th Ave and includes a single column table with seven rows on the left and the alternative route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.4 to 1.5 billion. Row 2: 123 residential unit displacements. Row 3: Eight historic properties affected. Row 4: 1.3 acres of parkland permanently affected. Row 5: 4.6 acres of biodiversity permanently affected. Row 6: 1.0 Miles of Roadway (Guideway) affected. Row 7: Other considerations. Text below the cross-section cutaway reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. The map to the right is overlayed with seven callout boxes. One callout box has a bird icon, which indicates permanent biodiversity effects. It is pointing at an area along the proposed route and the text reads “SW Queen Anne Greenbelt.” One callout box has a tree icon, which indicates permanent park effects. It is pointing at Kinnear Park and the text reads “Kinnear Park.” One callout box has a magnifying glass icon, which indicates other project considerations. It is pointing at the proposed station location and the text reads “Steep slopes.” Three callout boxes have a car icon, which indicates roadway effects. Each of the callout boxes point to the proposed route with text that reads: “construction closures on Eliot,” “Complex utility relocations,” and “Left turn restrictions.” — Click to enlarge

The slide is labeled Prospect Street Station/Central Interbay and includes a single column table with seven rows on the left and the alternative route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.5 to 1.6 billion. Row 2: 5 residential unit displacements. Row 3: Two historic properties affected. Row 4: 4.5 acres of parkland permanently affected. Row 5: 5.7 acres of biodiversity permanently affected. Row 6: 0.1 Miles of Roadway (Guideway) affected. Row 7: Other considerations. Text below the cross-section cutaway reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. The map to the right is overlayed with four callout boxes. One callout box has a bird icon, which indicates permanent biodiversity effects. It is pointing at an area along the proposed route and the text reads “SW Queen Anne Greenbelt.” Two callout boxes have a tree icon, which indicates permanent park effects. The first callout box is pointing at Kinnear Park and the text reads “Kinnear Park.” The second box is pointing at the Interbay Golf Center and the text reads “Interbay recreation facilities.” One callout box has a magnifying glass icon, which indicates other project considerations. It is pointing at the proposed station location and the text reads “Steep slopes.” — Click to enlarge

Previous Next

Downtown Alternatives

Map of Seattle Center, South Lake Union, Denny, Westlake and Midtown stations in Seattle showing pink line for preferred alternatives, and blue lines for other Draft EIS alternatives. See text description below for additional details. Click to enlarge — Click to enlarge

Click to enlarge

The 5th Avenue/Harrison Street Alternative would be in a tunnel generally from south heading north under 5th Avenue and Westlake Avenue and then heading west under Harrison Street and Republican Street. Stations would be located as follows:

Midtown Station: The station would be beneath 5th Avenue between Columbia Street and Madison Street.
Westlake Station: The station would be beneath 5th Avenue between Pike Street and Pine Street.
Denny Station: The station would be beneath Westlake Avenue between Denny Way and Lenora Street.
South Lake Union Station: The station would be beneath Harrison Street, between Dexter Avenue North and just west of Aurora Avenue North.
Seattle Center Station: The station would be beneath Republican Street, east of 1st Avenue North.

Click to enlarge

The 6th Avenue/Mercer Street Alternative would be in a tunnel generally from south heading north under 6th Avenue and Terry Avenue, and then west under Mercer Street. Stations would be located as follows:

Midtown Station: The station would be beneath 6th Avenue, between Madison Street and Seneca Street.
Westlake Station: The station would be beneath 6th Avenue, between Pine Street and Olive Way.
Denny Station: The station would be beneath Terry Avenue North, between Denny Way and John Street.
South Lake Union Station: The station would be north of Mercer Street between Aurora Avenue North and Taylor Avenue North.
Seattle Center Station: The station would be beneath Mercer Street, between Warren Avenue North and Queen Anne Avenue North.

Previous Next

Compare Downtown Alternatives

This slide is a comparison table with a summary of project considerations for alternatives in Downtown. It focuses on the performance level of each alternative for each of the project considerations and comprises a 2-column, 7-row table. The column headers read: 5th/Harrison and 6th/Mercer. The row headers read: Project cost (2019 in billions), residential displacements, business displacements, historic property effects, park effects (permanent), and traffic effects (full closures). Text to the right of the table reads: The above information is for illustration only. Please refer to DEIS for further detail. For lowest project cost, lowest residential displacement, fewest historic properties effected, and fewest park effects considerations, the 5th/Harrison alternative performed highest. The 6th/Mercer alternative affected the fewest number of roadway closures, performing highest. The information provided within each cell largely reflect the information provided in each alternative’s individual table and callout box slide except for some additional connection considerations. The 5th/Harrison alternative connects to all CID alternatives and connects to both Galer Street Stations in South Interbay. The 6th/Mercer alternative connects only to CID shallow alternatives and only to the Prospect Street Station in South Interbay. Please refer to the individual alternatives slides or to the DEIS for further detail. — Click to enlarge

The slide is labeled 5th/Harrison and includes a single column table with seven rows on the left and the alternative route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $4.7 to 4.9 billion. Row 2: Twenty-six residential unit displacements. Row 3: 44 to 46 business displacements. Row 4. Three historic properties affected. Row 5: 0.4 acres of parkland permanently affected. Row 6: Traffic effects (full closures) 5 to 8 roadways would be fully closed. Row 7: Other considerations. Text below the cross-section cutaway reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. The map to the right is overlayed with four callout boxes. One callout box has a tree icon, which indicates permanent parkland effects. It is pointing at the proposed Seattle Center station and the text reads “Seattle Center.” Three callout boxes have a magnifying glass icon, which indicates other project considerations. One box is pointing at the Denny neighborhood and the text reads “Disruption to streetcar operation.” Another box is pointing to an area between the proposed Denny and South Lake Union station and the text reads “Groundborne noise/vibration effects – 2 uses.” The final box is pointing just south of the proposed Seattle Center and the text reads “Groundborne noise/vibration effects – 5 uses.” — Click to enlarge

The slide is labeled 6th/Mercer and includes a single column table with seven rows on the left and the alternative route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $4.9 to 5.0 billion. Row 2: 167 residential unit displacements. Row 3: 47 business displacements Row 4: Nine historic properties affected. Row 5: 0.6 acres of parkland permanently affected. Row 6: Traffic effects (full closures) 4 roadways would be fully closed. Row 7: Other considerations. Text below the cross-section cutaway reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. The map to the right is overlayed with four callout boxes. One callout box has a house icon, which indicates residential displacement. It is pointing at the proposed Midtown station and the text reads “126 Temporary residential displacements.” One callout box has a tree icon, which indicates permanent park effects. It is pointing at the proposed Midtown station and the text reads “Naramore Fountain Park, Freeway Park.” Three callout boxes have a magnifying glass icon, which indicates other project considerations. One box is pointing at the Denny neighborhood and the text reads “Disruption to streetcar operation.” Another box is pointing to an area between the proposed Denny and South Lake Union station and the text reads “Groundborne noise/vibration effects – 2 uses.” The final box is pointing just south of the proposed Seattle Center and the text reads “Groundborne noise/vibration effects – 5 uses.” — Click to enlarge

Previous Next

Chinatown-International District Alternatives

Map of Chinatown-International District station in Seattle with blue lines for other Draft EIS alternatives. Lines indicate tunnel alternatives. See text description below for additional details. Click to enlarge — Click to enlarge

Click to enlarge

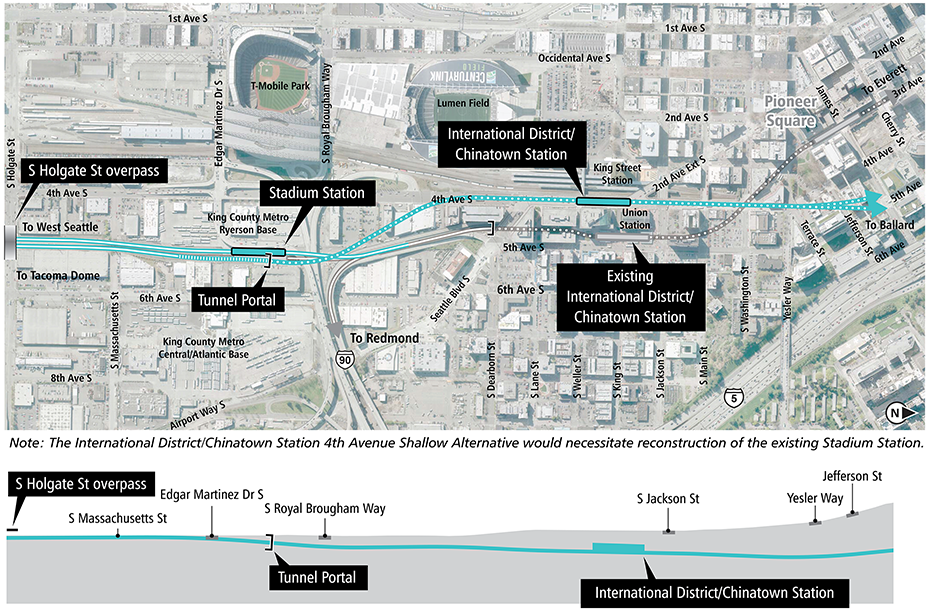

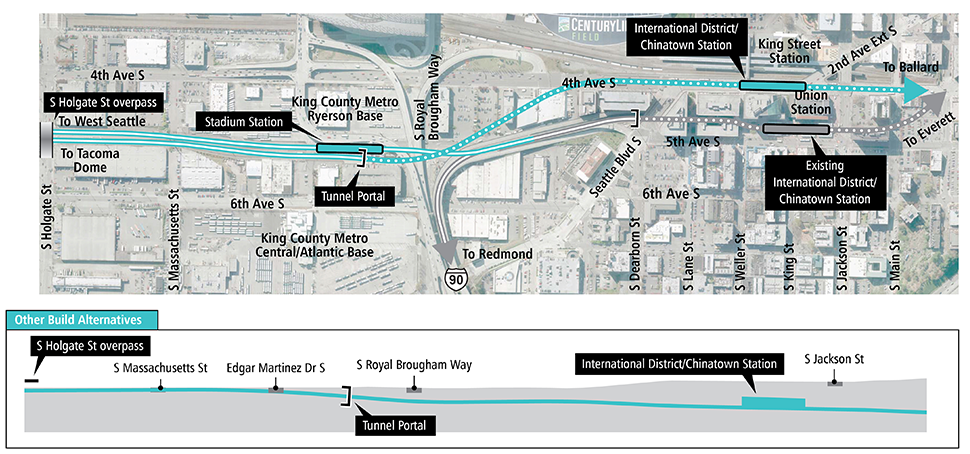

The 4th Avenue Shallow Alternative would begin at-grade in the vicinity of South Holgate Street, east of the existing Link light rail line, and extend north. The alternative would enter a tunnel between Edgar Martinez Drive South and South Royal Brougham Way. The tunnel would continue to the northwest under the existing Link light rail line at South Royal Brougham Way and then north under 4th Avenue South. A new station in the Chinatown-International District would be under 4th Avenue South, west of the existing International District/Chinatown Station. The 4th Avenue South Viaduct would be demolished and reconstructed to accommodate construction of this station.

Click to enlarge

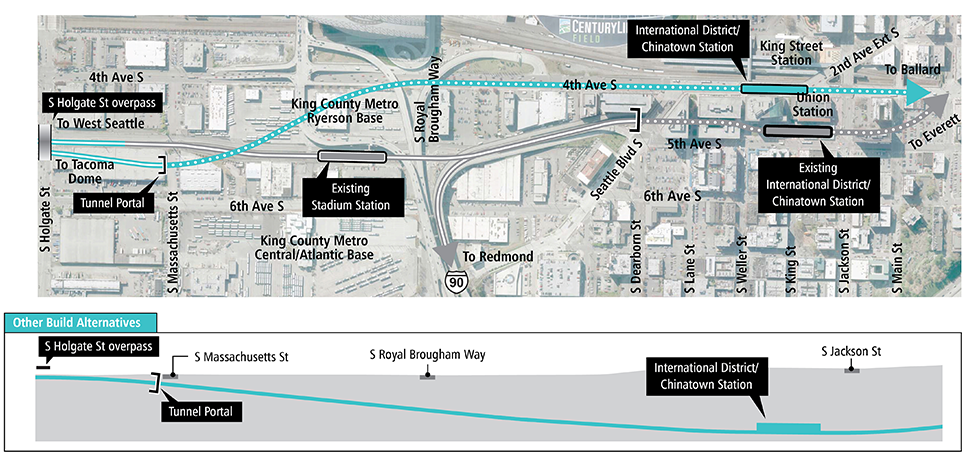

The 4th Avenue Deep Station Option would begin at-grade in the vicinity of South Holgate Street, east of the existing Link light rail line, and extend north. The tunnel portal would be in the vicinity of South Massachusetts Street and the tunnel alignment would begin transitioning to follow 4th Avenue South farther south than the 4th Avenue Shallow Alternative. From Seattle Boulevard South to James Street, the alignment and station location would be similar to the 4th Avenue Shallow Alternative but would be deeper.

Click to enlarge

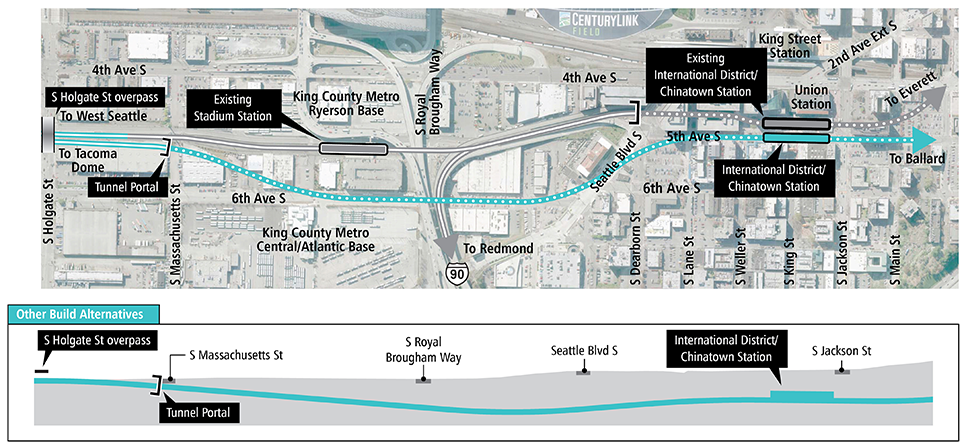

The 5th Avenue Shallow Alternative would begin at-grade in the vicinity of South Holgate Street, east of the existing Link light rail line, and extend north. The alternative would enter a tunnel in the vicinity of South Massachusetts Street and would continue north beneath 6th Avenue South. The tunnel would transition to be under 5th Avenue South north of Seattle Boulevard South. The station in the Chinatown-International District would be under 5th Avenue South, east of the existing International District/Chinatown Station.

Click to enlarge

The 5th Avenue Shallow Diagonal Station Configuration would be the same as the 5th Avenue Shallow Alternative except that it would transition towards 5th Avenue South further north of Seattle Boulevard South with a similar station entrance location.

Click to enlarge

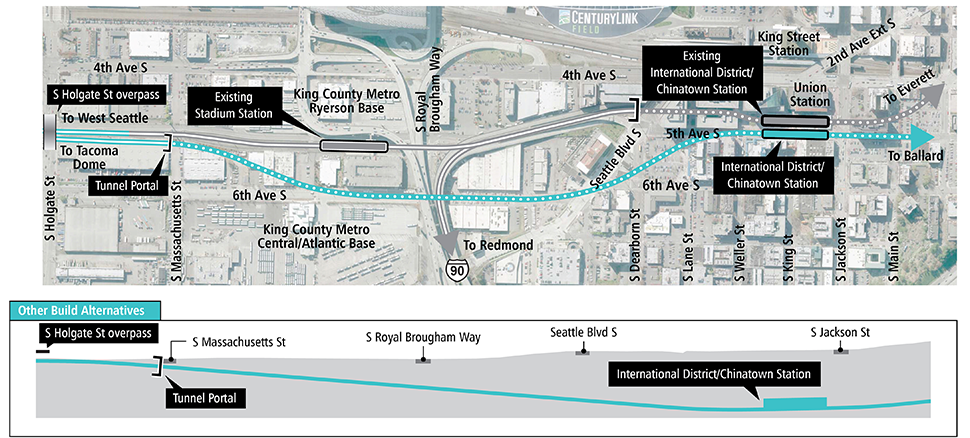

The 5th Avenue Deep Station Option would generally follow the same route as the 5th Avenue Shallow Alternative, except that the tunnel and the station would be deeper.

Previous Next

Compare Chinatown-International District Alternatives

This slide is a comparison table with a summary of project considerations for alternatives in the Chinatown-International District. It focuses on the performance level of each alternative for each of the project considerations and comprises a 6-column, 6-row table. The column headers read: 4th Shallow, 4th Deep, 5th Shallow, 5th Shallow Diagonal Station Configuration, and 5th Deep. The row headers read: Project cost (2019 in billions), residential displacements, business displacements, platform access, construction effects, and other considerations. Text under the table reads: The above information is for illustration only. Please refer to DEIS for further detail. For project cost, the 5th Shallow and 5th Shallow Diagonal Station Configuration alternative perform highest by being the lowest in cost. For residential displacement, all but the 4th Shallow alternative would cause no residential displacement, performing the highest. The 4th Shallow and 4th Deep alternatives performed highest in mitigating business displacement. The 4th Shallow, 5th Shallow, and 5th Shallow Diagonal Station Configuration alternatives all performed highly in platform access. The 5th Shallow Diagonal Station Configuration and 5th Deep alternatives performed highest in construction effects. The information provided within each cell largely reflect the information provided in each alternative’s individual table and callout box slide except for some additional connection considerations for each alternative. The additional considerations for the 4th Shallow alternative include: connects to all downtown alternatives, connects all SODO alternatives, affects Ryerson bus base. The additional considerations for the 4th Deep alternative include: Connects only to downtown 5th Avenue/Harrison Street, connects only to the SODO At-Grade South Station option, displaces Ryerson bus base. The additional considerations for the 5th Shallow alternative include: connects to all downtown alternatives and connects to all SODO alternatives. The additional considerations for the 5th Shallow Diagonal Station Configuration include: Connects to all DT alternatives and connects to all SODO alternatives. The additional considerations four the 5th Deep alternative include: Connects only to Downtown 5th Ave/Harrison St. Connects to SODO At-Grade, SODO At-Grade Staggered Station Configuration and SODO At-Grade South Station Option. Please refer to the individual alternatives slides or to the DEIS for further detail. — Click to enlarge

The slide is labeled 4th Shallow and includes a single column table with five rows on the left and the alternative route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.8 billion (plus 100 million in additional cost for the preferred alternative in the Downtown Segment as compared to the 5th Shallow connection). Row 2: 120 residential unit displacements. Row 3: 5 to 8 business displacements. Row 4: Construction effects. See map. Row 5: Other considerations. Text below the cross-section cutaway reads: The 4th Avenue Shallow alternative would necessitate reconstruction of the existing Stadium Station. Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. The map to the right is overlayed with eight callout boxes. Six callout boxes have a traffic cone icon, which indicates traffic effects. The first box is pointing to the existing light rail line south of Stadium Station and the text reads “Link light rail closure ** 6 to 7 weeks.” The second callout box is pointing to the existing Stadium station and the text reads “Closes Stadium Station (up to 2 years). Two boxes are pointing at the proposed Chinatown Station and the texts read: “Detours 15,000 vehicles per day (6 years)” and “Station construction duration (9-11 years).” The next box is just south of the proposed Chinatown Station Seattle Center station and the text reads “Relocates major utilities.” The final construction effects callout box is pointing at the proposed route just north of the proposed Chinatown Station and the textbox reads “Disrupts streetcar operations (2 years).” One callout box has a magnifying glass icon, which indicates other project considerations. It is pointing at the existing Stadium Station and the text reads “Affects Ryerson Bus Base.” — Click to enlarge

The slide is labeled 4th Deep Station Option and includes a single column table with six rows on the left and the alternative route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.7 billion plus 200 million to account for additional cost for the preferred alternative in the Downtown segment as compared to the 5th Avenue Shallow connection. Row 2: No residential unit displacements. Row 3: Five business displacements. Row 4: Elevator Only Platform Access. Row 5: Construction Effects See Map. Row 6: Other considerations. Text below the cross-section cutaway reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. The map to the right is overlayed with six callout boxes. One callout box has a magnifying glass icon, which indicates that it is an additional project consideration. The callout box states “Displaces Ryerson Bus Base” and is pointing to the King County Metro Ryerson Base. The next four callout boxes have traffic cone icons, which indicate that they are construction effects. Two callout boxes point at the proposed light rail station along 4th Avenue and the texts read: “Station construction (duration 8 to 10 years)” and “Detours 30,000 vehicles per day (6.5 years).” The next callout box is pointing to a section of the proposed light rail route just north of the of the proposed Chinatown station and the text reads “Disrupts streetcar operations (2 years). The last construction effects callout box is pointing to a section of the proposed route just south of the proposed station location and the text reads “Relocates Major Utilities”. There is a final callout box that points to the cross-section cutaway of the station with a streetcar icon, which indicates platform access. The text reads “Elevator Only” and is pointing to the proposed Chinatown/International District Station platform. — Click to enlarge

The slide is labeled 5th Shallow and includes a single column table with five rows on the left and the 5th Shallow Alternative route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.2 to 1.3 billion. Row 2: No residential units displacements. Row 3: 19 business displacements. Row 4: Construction Effects See Map. Row 5: Other considerations. Text below the cross-section cutaway reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. The map to the right is overlayed with five callout boxes with traffic cone icons, which indicate that they are construction effects. Three of the callout boxes point to the proposed Chinatown/International District Station along 5th Avenue and the texts read: “Construction duration (8 to 9 years)”; “Detours 5,000 vehicles per day (9 months)”; and “Relocates major utilities and utility corridor”. Another callout box is pointing to a section of the proposed light rail route north of the proposed section and the text reads “Disrupts streetcar operations (6 months)” The final callout box is pointing to an area east of the proposed route and north of I-90 and states “Re-routes trolley bus (to 7th or 8th Ave S).” — Click to enlarge

The slide is labeled 5th Shallow Diagonal Station Configuration and includes a single column table with five rows on the left and the 5th Shallow Diagonal Station Configuration route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.2 to 1.3 billion. Row 2: No residential unit displacements. Row 3: 19 business displacements. Row 4: Construction Effects See Map. Row 5: Other considerations. Text below the cross-section cutaway reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail.
The map to the right is overlayed with three callout boxes with traffic cone icons, which indicate that they are construction effects. Two of the callout boxes point to the proposed Chinatown/International District Station along 5th Avenue. The text of the callout boxes read: “Station construction duration (5 to 6 years)” and “Temporary closure 8 businesses (<1 year).” The third callout box points to an area west of the proposed light rail station and the text reads: “Avoids major utility relocations.” — Click to enlarge

The slide is labeled 5th Deep Station Option and includes a single column table with six rows on the left
and the 5th Deep Station Option route map to the right, with a cross-section cutaway below. The table has
the following information. Row 1: Project cost (2019 in billions) is $1.3 billion plus 200 million to account
for additional cost for the preferred alternative in the Downtown segment as compared to the
5th Avenue Shallow connection. Row 2: No residential unit displacements. Row
3: Eighteen business displacements. Row 4: Elevator Only Platform Access. Row 5: Construction Effects See
Map. Row 6: Other considerations. Text below the cross-section cutaway reads: Diagrams are not
to scale and all measurements are appropriate. The above information is for illustration only. Please
refer to DEIS for further detail.
The map to the right is overlayed with two callout boxes with orange traffic cone
icons, which indicate that they are construction effects. They both point to
the proposed Chinatown/International District Station along 5th Avenue. The text on the callout boxes
read: “Station construction (duration 6.5 to 7.5 years)” and “Avoids
major utility relocations.”
There is a third callout box that points to the cross-section cutaway of the station with a streetcar icon,
which indicates platform access. The text reads “Elevator Only” and is pointing to
the Chinatown/International District Station platform. — Click to enlarge

Previous Next

SODO Alternatives

Maps of SODO Seattle showing pink lines for preferred alternatives and blue lines for other Draft EIS alternatives. Lines indicate elevated, and at-grade alternatives. The existing Link station is indicated on the preferred alternatives maps in grey. See text description below for additional details. Click to enlarge. — Click to enlarge

Click to enlarge

The At-Grade Alternative would travel at-grade west of and parallel to the existing Link light rail line in the SODO Busway. It would travel under the new South Holgate Street overpass, resulting in grade separation of vehicular traffic. The SODO Station would be at-grade, immediately west of the existing SODO Station, north of South Lander Street. This alternative would continue south at-grade under South Lander Street, which would be reconstructed as an overpass of the light rail tracks, resulting in grade separation from vehicular traffic. The light rail would transition to an elevated guideway along the SODO Busway south of South Lander Street.

Click to enlarge

The At-Grade Staggered Station Configuration would be the same as the At-Grade Alternative (preferred alternative) except that the west platform would be shifted slightly to the north. It would have the same station entrance locations.

Click to enlarge

The At-Grade South Station Option would generally be the same as the At-Grade Alternative (preferred alternative), except for the SODO Station location. A new at-grade station would be west of and approximately 200 feet south of the existing SODO Station, just north of South Lander Street. The existing SODO Station would also be relocated 200 feet south of its current location to be next to the new SODO Station.

Click to enlarge

The Mixed-Profile Alternative would travel at-grade north of the existing SODO Station, west of and parallel to the existing Link light rail line in the SODO Busway. South Holgate Street would be constructed as a new roadway overcrossing, resulting in grade separation with vehicular traffic. At South Walker Street, the alignment would transition to an elevated guideway and would continue south over South Lander Street. A new SODO Station would be elevated north of South Lander Street. This alternative would be elevated over South Lander Street, with a gated at-grade crossing of the existing light rail line, similar to today’s condition. The existing SODO Station would be relocated as described for At-Grade South Station Option and would be at-grade adjacent to the new elevated station.

Previous Next

Compare SODO Alternatives

Click to enlarge

The slide is labeled At-Grade and includes a single column table with five rows on the left and an At-Grade SODO station location map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $0.6 to 0.7 billion. Row 2: 20 to 32 business displacements. Row 3: Transportation effects. See map. Row 4: Construction Effects. See Map. Row 5: Other considerations. Text below the cross-section cutaway reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. The map to the right is overlayed with three callout boxes. One callout box has a traffic cone icon, which indicates it is a construction effect. It is pointing to a new South Lander Street overpass and the text reads: “South Lander Street closure (2 years)”. One callout box has a magnifying glass icon, which indicates other project considerations.” It is pointing at the New South Lander Street overpass as well as the new South Holgate Street overpass and the text reads: “Two new grade separated crossings.” The final callout box has a bus icon, which indicates transportation effects. It is pointing to the SODO Busway and the text reads: “SODO Busway (permanent closure).” — Click to enlarge

The slide is labeled At-Grade Staggered Station Configuration and includes a single column table with five rows on the left and an At-Grade SODO station location map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $0.5-0.6 billion. Row 2: 19 to 31 business displacements. Row 3: Transportation effects. See map. Row 4: Construction Effects. See Map. Row 5: Other considerations. Text below the cross-section cutaway reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. The map to the right is overlayed with four callout boxes. One callout box has a traffic cone icon, which indicates it is a construction effect. It is pointing to the new South Lander Street overpass and the text reads: “S. Lander Street closure (2 years).” Two callout boxes have a magnifying glass icon, which indicates other project considerations. The first callout box is pointing to the new South Lander Street overpass and the text reads: “Avoids USPS acquisition.” The second callout box pointing at the new South Lander Street overpass as well as the new South Holgate Street overpass and the text reads: “Two new grade separated crossings.” The final callout box has a bus icon, which indicates transportation effects. It is pointing to the SODO Busway and the text reads: “SODO Busway (permanent closure).” — Click to enlarge

The slide is labeled At-Grade South Station Option and includes a single column table with five rows on the left and an At-Grade SODO South Station location map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $0.6 to 0.7 billion. Row 2: 17 to 29 business displacements. Row 3: Transportation effects. See map. Row 4: Construction effects. See Map. Row 5: Other considerations. Text below the cross-section cutaway reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. The map to the right is overlayed with three callout boxes. One callout box has a traffic cone icon, which indicates it is a construction effect. It is pointing to a new South Lander Street overpass and the text reads: “S. Lander Street closure (3 years).” One callout box has a magnifying glass icon, which indicates other project considerations. It is pointing at the New South Lander Street overpass as well as the new South Holgate Street overpass and the text reads: “Two new grade separated crossings.” The final callout box has a bus icon, which indicates transportation effects. It is pointing to the SODO Busway and the text reads: “SODO Busway (permanent closure).” — Click to enlarge

Click to enlarge

Previous Next

Duwamish Alternatives

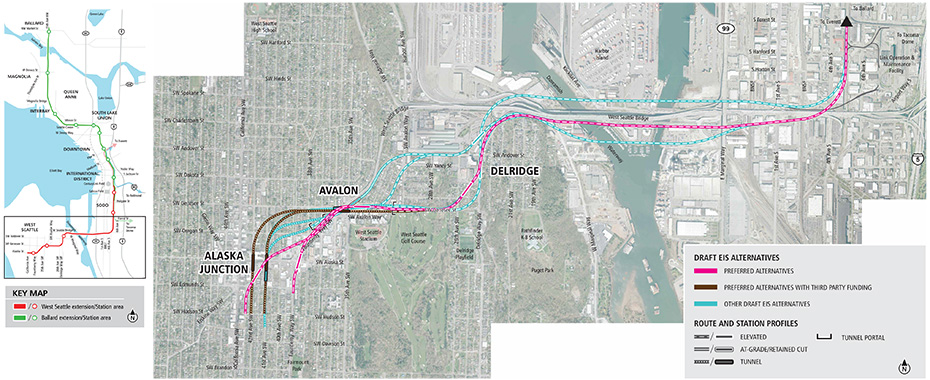

Map of Delridge, Avalon and Alaska Junction stations in southwest Seattle showing pink lines for preferred alternatives, brown lines for preferred alternatives with third party funding, and blue lines for other Draft EIS alternatives. Lines indicate elevated, at-grade and tunnel alternatives. See text description below for additional details Click to enlarge. — Click to enlarge

Click to enlarge

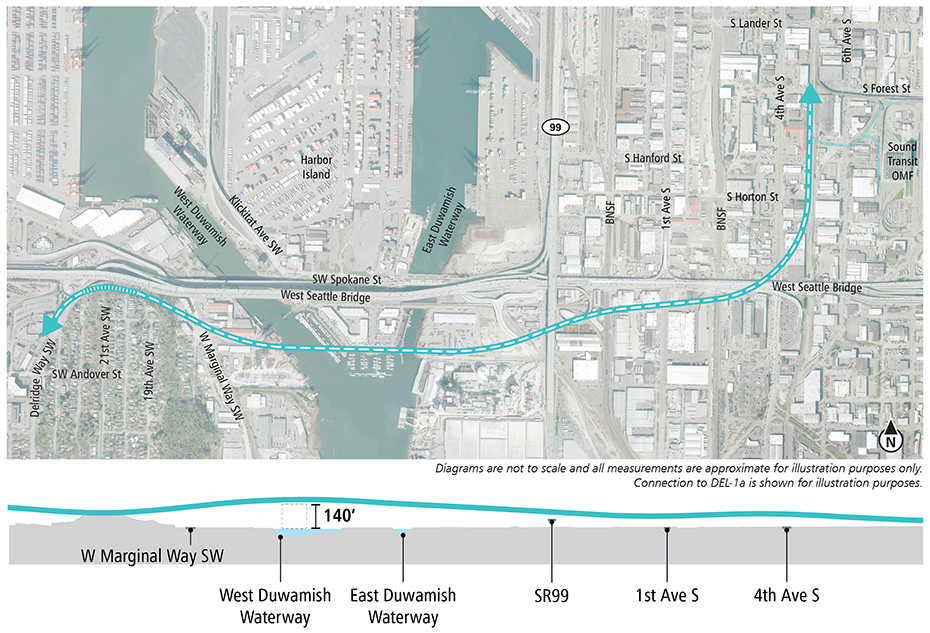

The South Crossing Alternative would continue south from South Forest Street along the west side of the existing light rail line on an elevated guideway, past the Operations and Maintenance Facility Central before heading southwest to cross over to the south side of the Spokane Street Bridge and the West Seattle Bridge. The alternative would continue west and to the south of the West Seattle Bridge. The alternative would cross over the East Duwamish Waterway, Harbor Island and the West Duwamish Waterway on a fixed, light-rail-only bridge. West of the Duwamish Waterway crossing, the alternative would cross the northern edge of Pigeon Point in a combination of elevated guideway and retained-cut and fill before turning southwest on an elevated guideway that follows Delridge Way Southwest.

Click to enlarge

The South Crossing South Edge Crossing Alignment Option would be the same as the South Crossing Preferred Alternative, except it would cross the East and West Duwamish Waterways on the south edge of Harbor Island.

Click to enlarge

The North Crossing Alternative would continue south from South Forest Street along the west side of the existing light rail line on an elevated guideway, before heading west on a new fixed, light rail-only bridge north of the existing West Seattle Bridge. After crossing the West Duwamish Waterway, the alternative would cross over the West Seattle Bridge to run south on the west side of Delridge Way Southwest.

Previous Next

Compare Duwamish Alternatives

This slide is a comparison table with a summary of project considerations for alternatives in Duwamish. It focuses on the performance level of each alternative for each of the project considerations and comprises a 3-column, 6-row table. The column headers read: South Crossing Alternative, South Edge Crossing Alignment Option, and North Crossing Alternative. The row headers read: Project cost (2019 in billions), residential displacements, business displacements, maritime business displacements, park effects (permanent), and other considerations. Text under the table reads: The above information is for illustration only. Please refer to DEIS for further detail. For project cost, the South Crossing Alternative performed highest by being the lowest in cost. The North Crossing Alternative has no project residential displacement impact, performing highest. South Edge Grossing Alignment Option performed higher than the South Crossing or North Crossing alternatives by having the lowest numbers of businesses projected to be displaced. However, the South Crossing Alternative had the fewest number of maritime business displacements. The North Crossing Alternative has no projected permanent park effects, performing highest. The information provided within each cell reflects the information provided in each alternative’s individual table and callout box slide. Please refer to the individual alternatives slides or to the DEIS for further detail. — Click to enlarge

The slide is labeled South Crossing Alternative and includes a single column table with five rows on the left and the South Crossing Alternative route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.2 billion. Row 2: 26 residential displacements. Row 3: 36 business displacements. Row 4: 1.5 acres of parkland permanently affected. Row 5: Other considerations. Text below the table reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. Connection to preferred alternative in Delridge is shown for illustration purposes. The map to the right is overlayed with five callout boxes. Two callout boxes have a tree icon, indicating park effects. The first callout box is pointing to the West Duwamish greenbelt south of the proposed route and the text reads: “West Duwamish Greenbelt. 1.2 acres.” The second callout box is pointing to the T-102 Park and the text reads: “T-102 Park. 0.3 acres.” Two callout boxes have a magnifying glass icon, which indicates other project considerations. One callout box is pointing to the southern portion of Hunter Island, south of the proposed route and the text reads: “BNSF Bridge constructability.” The other callout box is pointing to the intersection of Delridge Way SW and 21st Ave and the text reads “Pigeon Point constructability.” The final callout box has an anchor icon, which indicates maritime-dependent businesses. It is pointing to a port alongside the West Seattle Bridge and the text reads: “Maritime-dependent businesses. 3.” — Click to enlarge

The slide is labeled South Edge Crossing Alignment Option and includes a single column table with five rows on the left and the South Edge Crossing Alignment Option route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.3 billion. Row 2: 26 residential displacements. Row 3: 29 business displacements. Row 4: 1.9 acres of parkland permanently affected. Row 5: Other considerations. Text below the table reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. Connection to preferred alternative in Delridge is shown for illustration purposes. The map to the right is overlayed with five callout boxes. Two callout boxes have a tree icon, indicating park effects. The first callout box is pointing to the West Duwamish greenbelt south of the proposed route and the text reads: “West Duwamish Greenbelt. 1.3 acres.” The second callout box is pointing to the T-102 Park and the text reads: “T-102 Park. 0.6 acres.” Two callout boxes have a magnifying glass icon, which indicates other project considerations. One callout box is pointing to the BSNF Bridge and the text reads “BNSF Bridge constructability.” The other callout box is pointing to the intersection of Delridge Way SW and 21st Ave and the text reads “Pigeon Point constructability.” The final callout box has an anchor icon, which indicates maritime-dependent businesses. It is pointing to a port on the southern point of Hunter Island and the text reads: “5 Maritime-dependent businesses.” — Click to enlarge

The slide is labeled North Crossing Alternative and includes a single column table with five rows on the left and the North Crossing Alternative route map to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.5 billion. Row 2: No residential displacements. Row 3: 38 business displacements. Row 4: No permanent park effects (permanent). Row 5: Other considerations. Text below the table reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. Connection to preferred alternative in Delridge is shown for illustration purposes. The map to the right is overlayed with four callout boxes. Two callout boxes have a magnifying glass icon, indicating other considerations. The first callout box is pointing to an area along the East Duwamish waterway north of the West Seattle Bridge and the text reads: “T-25 Restoration Site.” The second callout box is pointing to Hunter Island and West Seattle and the text reads: “Port of Seattle T-5 & T-18.” Another callout box that is pointing to the intersection of 4th Ave South and S Harrison Street and the text reads: “Fire Station 14 effects.” The final callout box has an anchor icon, which indicates maritime-dependent businesses. It is pointing to a port on the southeast side of Hunter Island and the text reads: “10 Maritime-dependent businesses.” — Click to enlarge

Previous Next

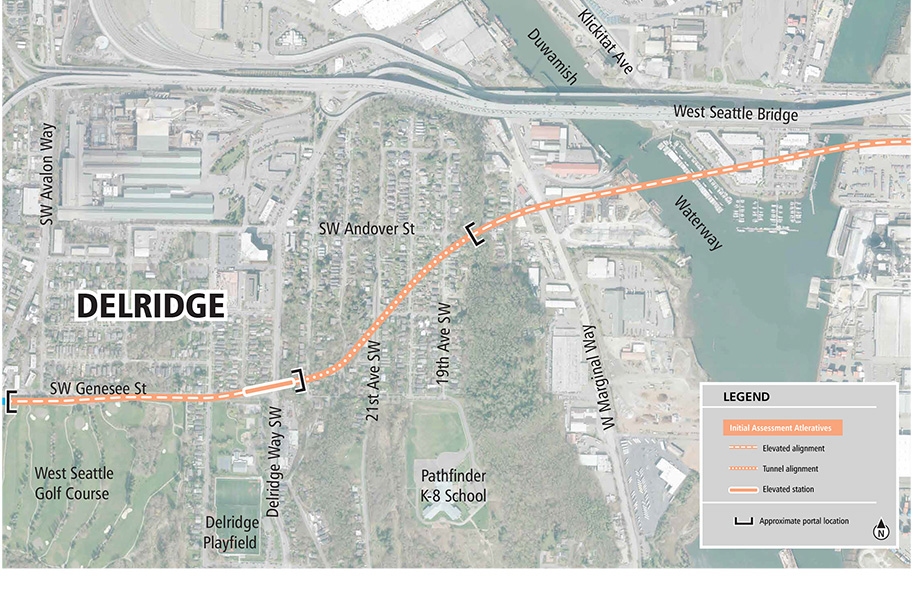

West Seattle Junction/Delridge Alternatives

Click to enlarge

West Seattle Junction

The Elevated Fauntleroy Way Station Alternative would be elevated along the south side of Southwest Genesee Street between 31st Avenue Southwest and Fauntleroy Way Southwest. The alignment would head southwest on Fauntleroy Way Southwest and continue along the west side of Fauntleroy Way Southwest. The guideway would cross to the east side of Fauntleroy Way Southwest south of Southwest Oregon Street. Elevated tail tracks would begin south of the Alaska Junction Station and end within the Fauntleroy Way Southwest right of way just past Southwest Edmunds Street. Stations would be located as follows:

Avalon Station: The station would be elevated along the south side of Southwest Genesee Street and east of 35th Avenue Southwest.
Alaska Junction Station: The station would be elevated southeast of Fauntleroy Way Southwest, straddling Southwest Alaska Street.

Delridge

The Dakota Street Station Alternative would follow Delridge Way Southwest south on an elevated guideway to an elevated station. The guideway would be on the west side of Delridge Way, except for in the vicinity of the Southwest Andover Street, where it would be in the roadway right of way. The station would be elevated between Delridge Way Southwest and 26th Avenue Southwest, south of Southwest Dakota Street, and oriented southwest-northeast. South of the station, the alternative would curve west and cross to the south side of the Southwest Genesee Street right of way, north of the West Seattle Golf Course. The guideway would continue west along the south edge of Southwest Genesee Street and connect to an elevated guideway in the West Seattle Junction segment.

Click to enlarge

West Seattle Junction

The Elevated 41st/42nd Avenue Alternative would be elevated along the south side of Southwest Genesee Street between 31st Avenue Southwest and Fauntleroy Way Southwest. The alternative would turn southwest and continue along the north side of Fauntleroy Way Southwest before curving southwest between Southwest Oregon Street and Southwest Alaska Street. The guideway would turn south in the vicinity of 41st Avenue Southwest and Southwest Alaska Street and continue south to Southwest Hudson Street. The guideway would end on the west side of 42nd Avenue Southwest and would include a tail track south of the West Seattle Station. Stations would be located as follows:

Avalon Station: The station would be elevated along the south side of Southwest Genesee Street, east of 35th Avenue Southwest.
Alaska Junction Station: The station would be elevated between 41st Avenue Southwest and 42nd Avenue Southwest, south of Southwest Alaska Street.

Delridge

Click to enlarge

West Seattle Junction

The Tunnel 41st Avenue Station Alternative would be in a tunnel under Southwest Genesee Street heading west from 31st Avenue Southwest then curve to the southwest between 37th Avenue Southwest and 41st Avenue Southwest. The tunnel would end in the vicinity of Southwest Hudson Street, with the tail track in a north-south orientation under 41st Avenue Southwest. The guideway would be entirely in a tunnel. Stations would be located as follows:

Avalon Station: The station would be beneath Fauntleroy Way Southwest.
Alaska Junction Station: The station would be beneath 41st Avenue Southwest and Southwest Alaska Street.

Delridge

The Dakota Street Station Lower Height would follow the same alignment as the Dakota Street Station Alternative to the station but would be at a lower elevation to connect to tunnel alternatives in the West Seattle Junction segment. From the station, the alternative would continue south to cross Southwest Genesee Street and would run along the northern edge of the West Seattle Golf Course. A tunnel portal for connecting to tunnel alternatives in the West Seattle Junction segment would be in the northwest corner of the West Seattle Golf Course, south of Southwest Genesee Street and east of 31st Avenue Southwest.

Click to enlarge

West Seattle Junction

The Tunnel 42nd Avenue Station Option would be the same as the Tunnel 41st Avenue Station Alternative, except the tunnel would extend to 42nd Avenue Southwest instead of 41st Avenue Southwest. The tunnel would end in the vicinity of Southwest Hudson Street, with a tail track in a north-south orientation under 42nd Avenue Southwest. Stations would be located as follows:

Avalon Station: The station would be beneath Fauntleroy Way Southwest.
Alaska Junction Station: The station would be in a tunnel beneath 42nd Avenue Southwest and Southwest Alaska Street.

Delridge

Click to enlarge

West Seattle Junction

The Short Tunnel 41st Avenue Station Alternative would be on an elevated guideway along the south side of Southwest Genesee Street from 31st Avenue Southwest to the west side of Fauntleroy Way Southwest. It would continue along the west side of Fauntleroy Way Southwest on an elevated guideway before transitioning to an at-grade alignment near 37th Avenue Southwest. The guideway would turn west near Southwest Oregon Street and transition into a tunnel with a portal in the vicinity of Southwest Oregon Street and 38th Avenue Southwest. The tunnel would turn south and end south of Southwest Hudson Street, with a tail track in a north-south orientation along and under 41st Avenue Southwest. A tunnel in West Seattle was not included in the Sound Transit 3 Plan (2016). Therefore, third-party funding would be required for this alternative. Stations would be located as follows:

Avalon Station: The station would be elevated along the south side of Southwest Genesee Street and east of 35th Avenue Southwest.
Alaska Junction Station: The station would be in a tunnel beneath 41st Avenue Southwest and south of Southwest Alaska Street.

Delridge

Click to enlarge

West Seattle Junction

The Medium Tunnel 41st Avenue Station Alternative begins in a retained cut south of Southwest Yancy Street and follows the east side of the West Seattle Bridge connection to Southwest Genesee Street. This alignment enters a tunnel at Southwest Genesee Street and 37th Avenue Southwest. The alignment then curves southwest west of 37th Avenue Southwest to 41st Avenue Southwest. It terminates at Southwest Hudson Street, with the tail track in a north-south orientation under 41st Avenue Southwest. The guideway would be entirely in a tunnel. Stations would be located as follows:

Avalon Station: The station would be in a retained cut south of Southwest Genesee Street, beneath Fauntleroy Way Southwest.
Alaska Junction Station: The station would be in a tunnel beneath 41st Avenue Southwest and Southwest Alaska Street.

Delridge

The Andover Street Station Lower Height Alternative would follow the same alignment as the Andover Street Station Alternative until Southwest Avalon Way, but would be at a lower elevation to connect to tunnel alternatives in the West Seattle Junction segment. The elevated guideway would cross over Southwest Avalon Way and then turn south. The elevated guideway would cross over Southwest Avalon Way and then turn south in the vicinity of 32nd Avenue Southwest to travel south along the east side of the West Seattle Bridge connection to Fauntleroy Way Southwest, transitioning from elevated into a retained cut. The alignment would turn west in the vicinity of Southwest Genesee Street in a retained cut, passing below Southwest Genesee Street.

Click to enlarge

West Seattle Junction

Avalon Station: The station would be elevated along the south side of Southwest Genesee Street and east of 35th Avenue Southwest.
Alaska Junction Station: The station would be elevated southeast of Fauntleroy Way Southwest, straddling Southwest Alaska Street.

Delridge

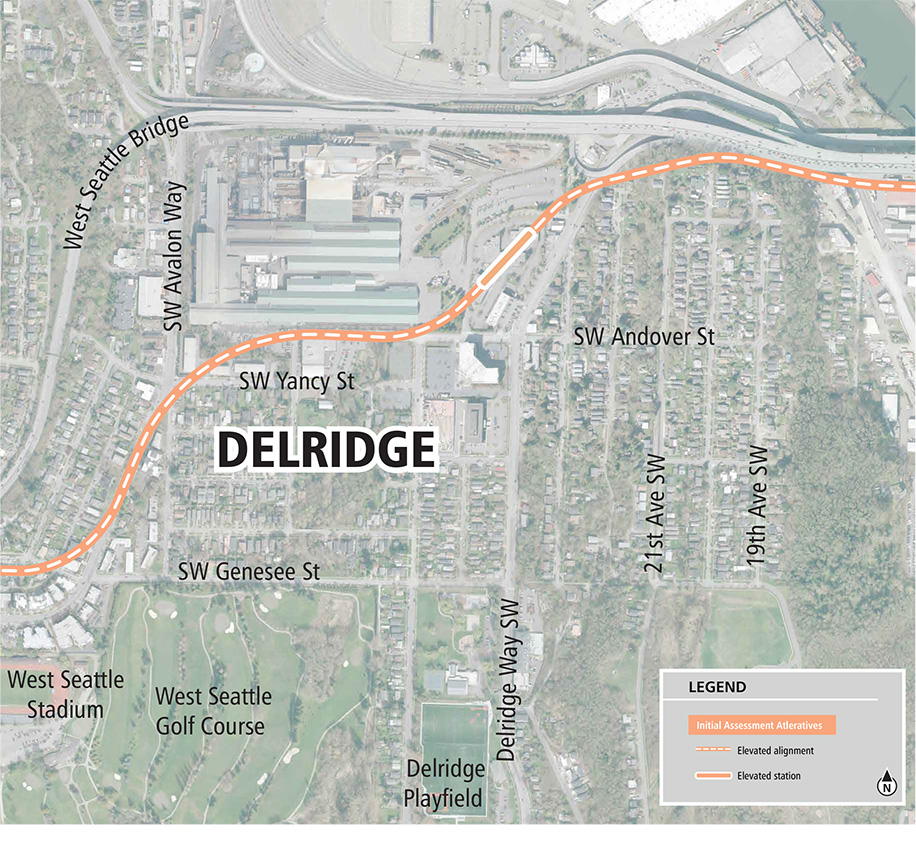

The Andover Street Station Alternative would be on an elevated guideway on the west side of Delridge Way Southwest, with a station north of Southwest Andover Street, in a northeast-southwest orientation. The alignment would travel west along Southwest Andover Street on an elevated guideway then south along Southwest Avalon Way in the vicinity of Southwest Yancy Street. The guideway would continue south along Southwest Avalon Way and turn west on the north side of Southwest Genesee Street.

Previous Next

Compare West Seattle Junction/Delridge Alternatives

This slide is a comparison table with a summary of project considerations for alternatives in West Seattle and Delridge. It focuses on the performance level of each alternative for each of the project considerations and comprises a 7-column, 5-row table. The column headers read: Elevated Fauntleroy Dakota Street, Elevated 41st/42nd Dakota Street, Tunnel 41st Dakota Street Lower Height, Tunnel 42nd Dakota Street Lower Height, Short Tunnel 41st Dakota Street, Medium Tunnel 41st Andover Street Lower Height, and Elevated Fauntleroy Andover Street. The row headers read: Project cost (2019 in billions), residential displacements, business displacements, park effects (permanent), and other considerations. Text under the table reads: The above information is for illustration only. Please refer to DEIS for further detail. For project cost, the Elevated Fauntleroy Dakota Street, Medium Tunnel 41st Andover Street Lower Height, and Elevated Fauntleroy Andover Street alternatives performed highest by being the lowest in cost. The Medium Tunnel 41st Andover Street Lower Height alternative is projected to have the fewest residential displacements, performing highest. All but the Elevated 41st/42nd Dakota Street and Tunnel 42nd Dakota Street Lower Height alternatives were high performing in business displacements considerations. The Medium Tunnel 41st Andover Street Lower Height and Elevated Fauntleroy Andover Street have no permanent parkland effects, performing highest. The information provided within each cell reflects the information provided in each alternative’s individual table and callout box slide. Please refer to the individual alternatives slides or to the DEIS for further detail. — Click to enlarge

The slide is labeled Elevated Fauntleroy Way Station - Dakota Street Station and includes a single column table with five rows on the left and the route map utilized in the previous slide to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.6 billion. Row 2: 607 residential displacements. Row 3: 32 business displacements. Row 4: 0.6 acres of parkland permanently affected. Row 5: Other considerations. Text below the table reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. Connection to preferred alternative in Duwamish is shown for illustration purposes. The map to the right is overlayed with four callout boxes. Two callout boxes have a magnifying glass icon, which indicates other project considerations. The first callout box is pointing to an area in the Delridge neighborhood and the text reads: “Social service provider.” The other callout box is pointing to the proposed Delridge Station on the cutaway section and the text reads: “Taller guideway and station.” One callout box has tree icon, indicating park effects. It is pointing to the West Seattle Golf Course and the text reads: “West Seattle Golf Course. 0.5 acres.” The final callout box has a house icon, indicating residential displacement. It is pointing at the proposed Alaska Junction station and the text reads: “Mixed-use apartment – 239 units.” — Click to enlarge

The slide is labeled Elevated 41st/42nd Ave Station - Dakota Street Station and includes a single column table with five rows on the left and the route map utilized in the previous slide to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $2.0 billion. Row 2: 551 residential unit displacements. Row 3: 77 business displacements. Row 4: 0.6 acres of parkland permanently affected. Row 5: Other considerations. Text below the table reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. Connection to preferred alternative in Duwamish is shown for illustration purposes. The map to the right is overlayed with five callout boxes. Two callout boxes have a magnifying glass icon, which indicates other project considerations. The first callout box is pointing to an area in the Delridge neighborhood and the text reads: “Social service provider.” The other callout box is pointing to the proposed Delridge Station on the cutaway section and the text reads: “Taller guideway and station.” One callout box has tree icon, indicating park effects. It is pointing to the West Seattle Golf Course and the text reads: “West Seattle Golf Course. 0.5 acres.” The next callout box has a multi-story building icon, which indicates business displacement. It is pointing at the proposed Alaska Junction Station and the text reads: “Mixed-use commercial – 38.” The final callout box has a house icon, indicating residential displacement. It is pointing at an area in the Alaska Junction neighborhood and the text reads “Mixed-Use apartment – 216 units.” — Click to enlarge

The slide is labeled Tunnel 41st Avenue Station - Dakota Street Station Lower Height and includes a single column table with five rows on the left and the route map utilized in the previous slide to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $2.1 billion. Row 2: 364 residential displacements. Row 3: 31 business displacements. Row 4: 1.4 acres of parkland permanently affected. Row 5: Other considerations. Text below the table reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. Connection to preferred alternative in Duwamish is shown for illustration purposes. The map to the right is overlayed with five callout boxes. Three callout boxes have a magnifying glass icon, which indicates other project considerations. The first callout box is pointing to an area in the Delridge neighborhood and the text reads: “Social service provider.” The second callout box is floating on the map and the text reads: “Two tunnel stations.” The third callout box is pointing to the proposed Delridge Station on the cutaway section and the text reads: “Taller guideway and station.” One callout box has tree icon, indicating park effects. It is pointing to the West Seattle Golf Course and the text reads: “West Seattle Golf Course. 1.4 acres.” The final callout box has a house icon, indicating residential displacement. It is pointing at an area just south of the proposed Alaska Junction station and the text reads: “Apartment building – 90 units.” — Click to enlarge

The slide is labeled Tunnel 42nd Ave Station - Dakota Street Station Lower Height and includes a single column table with five rows on the left and the route map utilized in the previous slide to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $2.2 billion. Row 2: 321 residential unit displacements. Row 3: 60 business displacements. Row 4: 1.6 acres of parkland permanently affected. Row 5: Other considerations. Text below the table reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. Connection to preferred alternative in Delridge is shown for illustration purposes The map to the right is overlayed with six callout boxes. Three callout boxes have a magnifying glass icon, which indicates other project considerations. The first callout box is pointing to an area in the Delridge neighborhood and the text reads: “Social service provider.” The second callout box is floating on the map and the text reads: “Two tunnel stations.” The third callout box is pointing to the proposed Delridge Station on the cutaway section and the text reads: “Taller guideway and station.” Two callout boxes have a tree icon, indicating park effects. One callout box is pointing to the West Seattle Golf Course and the text reads: “West Seattle Golf Course. 1.4 acres.” The other callout box is pointing to the proposed Alaska Junction Station and the text reads: “Junction Plaza Park – 0.2 acres.” The final callout box has a multi-story building icon, indicating business displacement. It is also pointing at the proposed Alaska Junction station and the text reads: “Mixed-use commercial – 38.” — Click to enlarge

The slide is labeled Short Tunnel 41st Avenue Station – Dakota Street Station and includes a single column table with five rows on the left and the route map utilized in the previous slide to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.9 billion. Row 2: 410 residential unit displacements. Row 3: 34 business displacements. Row 4: 0.5 acres of parkland permanently affected. Row 5: Other considerations. Text below the table reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. Connection to preferred alternative in Delridge is shown for illustration purposes. The map to the right is overlayed with five callout boxes. Three callout boxes have a magnifying glass icon, which indicates other project considerations. The first callout box is pointing to an are just north of the proposed Delridge Station and the text reads: “Social service provider.” The second callout box is floating in the Alaska Junction neighborhood and the text reads: “Tunnel station.” The third callout box is pointing to the proposed Delridge Station on the cutaway section and the text reads: “Taller guideway and station.” one callout box has a house icon, indicating residential displacement. It is pointing to the proposed Alaska Junction Station and the text reads: “Apartment building – 90 units.” The final callout box has a tree icon, indicating park effects. It is pointing at the West Seattle Golf Course and the text reads: “West Seattle Golf Course.” — Click to enlarge

The slide is labeled Medium Tunnel 41st Avenue Station – Andover Street Station Lower Height and includes a single column table with five rows on the left and the route map utilized in the previous slide to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.6 billion. Row 2: 201 residential unit displacements. Row 3: 35 business displacements. Row 4: No parkland permanently affected. Row 5: Other considerations. Text below the table reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. Connection to preferred alternative in Delridge is shown for illustration purposes. The map to the right is overlayed with seven callout boxes. Four callout boxes have a magnifying glass icon, which indicates other project considerations. The first callout box is pointing to the proposed Delridge Station and the text reads: “Delridge Station further north.” The second callout box is pointing to a segment of the proposed route between the proposed Avalon and Delridge Stations and the text reads: “Guideway follows West Seattle Bridge.” The third callout box is floating in the Alaska Junction neighborhood and the text reads: “Tunnel station.” The fourth callout box is pointing to the proposed Delridge Station on the cutaway section and the text reads: “Taller guideway and station.” Two callout boxes have a house icon, indicating residential displacement. The first box is at an area just south of the proposed Alaska Junction Station and the text reads: “Apartment building – 90 units.” The second box is pointing at a segment of the proposed route between Avalon and Delridge along Andover Street and the text reads: “Social service provider – 31 units.” The final callout box has a multi-story building icon, indicating business displacement. It is pointing at an area just south of the proposed Delridge Station and the text reads: “Business Park – 14.” — Click to enlarge

The slide is labeled Elevated Fauntleroy Way Station – Andover Street Station and includes a single column table with five rows on the left and the route map utilized in the previous slide to the right, with a cross-section cutaway below. The table has the following information. Row 1: Project cost (2019 in billions) is $1.5 billion. Row 2: 487 residential unit displacements. Row 3: 34 business displacements. Row 4: No parkland permanently affected. Row 5: Other considerations. Text below the table reads: Diagrams are not to scale and all measurements are appropriate. The above information is for illustration only. Please refer to DEIS for further detail. Connection to preferred alternative in Delridge is shown for illustration purposes. The map to the right is overlayed with five callout boxes. Three callout boxes have a magnifying glass icon, which indicates other project considerations. The first callout box is pointing to the proposed Delridge Station and the text reads: “Delridge Station further north.” The second callout box is pointing to a segment of the proposed route between the proposed Avalon and Delridge Stations and the text reads: “Guideway follows Avalon Way SW.” The third callout box is pointing to the proposed Delridge Station on the cutaway section and the text reads: “Taller guideway and station.” The next callout box has a house icon, indicating residential displacement. It is pointing at the proposed Alaska Junction Station and the text reads: “Mixed-use apartment – 239 units.” The final callout box has a multi-story building icon, indicating business displacement. It is pointing at an area just south of the proposed Delridge Station and the text reads: “Business Park – 14.” — Click to enlarge

Previous Next

How did we get here?

Two people stand in front of a large map of the Seattle area, featuring existing and future Sound Transit service lines. — November 2016: Voters approve funding for ST3, a plan that adds 62 new miles of light rail with stations serving 37 additional areas for a regional system reaching 116 miles. The plan also includes Bus Rapid Transit (BRT) on the Eastside, additional capacity for the Sounder South line, and access improvements to stations for all modes of travel.

Eight people sit together around a table viewing a large map. Several people are pointing to the map. — October 2017: Sound Transit hires a team of consultants to assist with the planning, early design, and environmental review of the West Seattle and Ballard Link Extensions.

A group of about 35 individuals sit around various tables inside the Sound Transit Board Room, in conversation with each other and looking at project materials. — January/February 2018: Sound Transit kicks off the first Stakeholder Advisory Group and Elected Leadership Group meetings to introduce the project and share what to expect for the alternatives development phase.

A person writes a comment on a sheet of paper adjacent to a comment collection box next to informational materials about West Seattle alternatives. — February - March 2018: Sound Transit and FTA host early scoping open houses and a comment period to collect public feedback on the ST3 representative project and gather new ideas to inform development of additional route and station location alternatives.

A person stands adjacent two large screens that read “Alternatives development overview” speaking into a microphone presenting to a crowd of people in a large room. — March 2018 - April 2019: Sound Transit develops and refines alternatives based on technical evaluations, as well as feedback from the public, Stakeholder Advisory Group, Elected Leadership Group and Sound Transit Board of Directors. The project went through 2 levels of evaluation between Early scoping and Scoping to help further refine alternatives.

A group of people are sitting in rows inside a large room, facing the presenter who is standing at a podium. — February - March 2019: Sound Transit and FTA host scoping open houses and a comment period to collect public feedback on the alternatives to date and topics to study in the Draft Environmental Impact Statement (EIS).

A group of 15 or more people sit along a large U-shaped table in formal attire in a large room with name plaques in front of them. A screen projector at the far end of the room reads, “West Seattle and Ballard Link Extensions”. A singular person sits in the center of the room and separate from the U-shaped table. — May 2019: The Sound Transit Board reviews the alternatives, evaluation results, public feedback and the recommendations of the Elected Leadership Group and identifies the preferred alternative and other alternatives to study in the Draft EIS.

A Link light rail train pulls into a station. Passengers wait on the platform for the train. — May - October 2019: After the Sound Transit Board identified preferred alternatives and other alternatives to study in the Draft EIS, they also directed staff to conduct initial assessments on additional route and station options that were suggested during the public scoping period, to establish whether further study in the Draft EIS is appropriate.

Two people stand in front of a large informational sign that reads “West Seattle, Ballard” that includes information about the project inside a large venue. There is a large group of people in the background who are looking at other project materials. — May 2019 - December 2021: Sound Transit’s environmental team develops the Draft EIS, a document that describes the multiple alternatives being considered, and how each alternative might affect the natural and built environment and transportation systems, both during construction and final operation of the light rail lines.

A Sound Transit employee stands and talks to two people visiting the project booth at an outdoor event. — August 2021: In early 2020, the Board launched a process called realignment to review options for addressing the significant affordability gap affecting future transit expansion projects not yet under construction. Based on current revenue projections and cost estimates, the Board’s adopted plan identifies:
